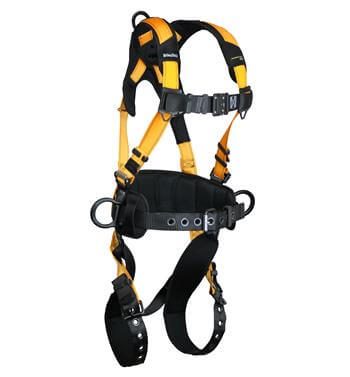

FallTech 7035B Journeyman Flex® Aluminum Belted Harness

Description

FallTech 7035B Journeyman Flex® Aluminum Belted Construction Harness, Back & Side D-Rings, Tongue Buckle Legs, Quick Connect Visi-Lock Chest, 6″ Waist Pad, Sizes: Small – Big Boys 3XL, 425 lb Max

Sizes S – 3XL Big Boys Harness- Applications: Fall Arrest, Work Positioning

The FallTech 7035B Journeyman Flex® Aluminum Belted Harness has a longstanding tradition of being the working man’s harness. New design elements have been engineered into the harness for added comfort reducing fatigue to the user. With its reduced weight and added comfort, the Journeyman Flex® Aluminum harness offers unmatched durability, reliability and value.

• Aluminum hardware for lighter weight
• Three D-rings; One Back and Two Hip
• Premium breathable padded air mesh shoulder yoke
• Quick Connect Visi-lock chest buckle
• 18” contoured leg pads
• FallTech proprietary CamLock torso adjusters
• Tongue buckle Leg Adjusters
• Non-slip dorsal D-ring adjustment
• 6” torso-sewn Waist Support Positioning Pad
• Size Chart below
• 400+lb Lanyard recommended – or 400+lb Retractable

• Tighter web construction offers added strength and longer life while maintaining pliability for ease of movement
• Lightweight electro-plated aluminum D-rings, torso and belt adjusters to reduce weight and fatigue throughout the day
• Strategically positioned Hip D-rings for optimized Work Positioning
• Re-engineered padding on the Shoulders, Waist and Legs for added all day comfort
• Ergonomic waist pad with integrated reinforcement elements provides rigid support
• ANSI Z359.11 compliant lanyard parking elements capture lanyard legs when not in use to reduce trip hazards
• Extreme duty removable work belt designed to remain in position supporting up to three loaded tool bags
• Visi-Lock Quick Connect buckles on the chest and legs feature a visual indicator that displays green when properly fastened
• Integrated dorsal strap keepers minimize downward sliding of the dorsal D-ring when SRD’s are attached
• FallTech exclusive CamLock torso adjusters allows simple, quick one handed adjustment
• Optional Suspension Trauma Relief System (PN 5040) provides self-rescue support, enhances blood circulation and

MATERIALS SPECIFICATIONS

• Webbing: Polyester; Min. 5,000 lbs. tensile strength
• Keepers: Plastic
• D-Rings: Aluminum; Min. 5,000 lbs. tensile strength
• Buckles/Adjusters: Aluminum; Min. 3,375 lbs. tensile strength
• Grommets: Brass
• Torso Adjusters: CamLock
• Foam: High density internal foam

PERFORMANCE SPECIFICATIONS

• Maximum Working Load: 425 lbs.
• ANSI User Capacity: 130 to 310 lbs. Max.
• OSHA User Capacity: 130 to 425 lbs. Max

STANDARDS

• ANSI: Z359.11-2014
• OSHA: 1926.502, 1910.66

WARNINGS

• Read, understand and follow all labels and instructions prior to use
• Inspect before each use
• Remove from service if there is evidence of damage or excessive wear
• Never attach a shock absorbing lanyard to a side D-Ring.
