Description

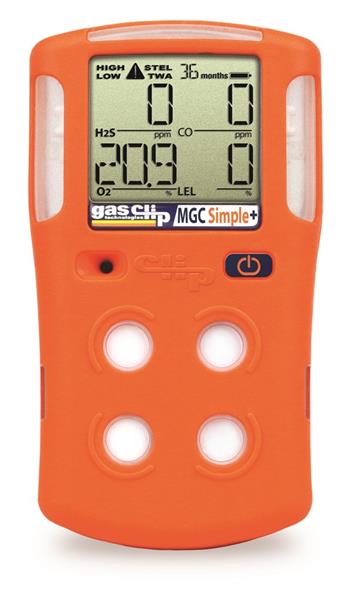

Gas Clip Technologies MGC-S-Plus Multi Gas Clip Simple Plus- 4 Gas Detector, Detects H2S, CO, O2 & Combustible Gases (LEL), 3 Year Run Time- No Charging Ever!
Gas Detection Made Simple
Used with MGC-S-Dock Simple Docking Station
Gas Clip Technologies – Portable Gas Detection You Can Count On!
Gas Detection Made Simple Plus
No charging ever! No calibration necessary! (Can be calibrated if required)
Reliably test for hydrogen sulfide (H2S), carbon monoxide (CO), oxygen (O2) and combustible gases (LEL) with this simple-to-use and simple-to-maintain detector. Just turn it on and have worry free assurance of protection against toxic gases 24/7 for three full years.
Low power usage is the key!
Gas Clip Technologies’ continued refinement of advanced low-power photometric infrared technology for combustible gas measurement helps make gas detection simpler and safer than ever. The newest member of their gas detector family, the Multi Gas Clip Simple Plus, features no charging ever and no calibrating necessary. It’s SIMPLE to use!
- 3 year run time – 3 year life!
- 3 year warranty. For any service, please call our service center.
- No Charging Ever! No Calibration Necessary! …But Can Be Calibrated.
- Large, easy to read screen
- Simple One Button Operation
- Works in oxygen enriched and oxygen deficient environments
- Continuous 1 second data logging
- LEL sensor is immune to H2S & silicone poison
- Assembled in USA
- Compatible with MGC Simple Dock or MGC Simple Wall Mount Dock
- Included with detector: calibration cap, calibration certificate & Quick Start Guide
- Size: 4.75” H x 2.75” W x 1.25” D (120.65 x 69.85 x 31.75 mm.)
- Weight: 7.675 oz. (220.2 g)
- Temperature: -4Ëš to +122ËšF (-20Ëš to +50ËšC)
- Humidity: 5% to 95% RH (non-condensing)
- Battery Life: 1095 Days continuous (based on avg. of 1.5 min. of alarm/day)
- Alarms: Visual, vibrating & audible (minimum 95 dB) Low, High, STEL, TWA & OL (Over Limit)
- LEDs: 4 Red alarm bar LEDs Yellow back-light (activated on button press) Red back-light (activated on alarm condition) Yellow maintenance notification LED
- Display: High viewing angle alphanumeric Liquid Crystal Display (LCD)
- Logs: 25 Bump tests 25 Events 25 Calibrations Continuous 1 second data logging (typical capacity > 2 months)
- Tests: Full function self-test upon activation Sensors, battery and circuitry tests run continuously
- Ingress Protection: IP 68
Certifications & Approvals:
- CAN/CSA C22.2 152 CSA 16.70084100 ANS/UL-913 and ANSI/ISA-S12.13
- Intrinsically Safe/Securite lntrinseque CSA: Class I, Division 1, Group A, B, C, and D Class I, Zone 0, AEx ia IIC T4 Ga UL 60079-0, UL60079-11
- IECEx: IECEx CSA 16.0038 IEC 60079-0:2011 IEC 60079-11:2011 Ex ia IIC T4 Ga
- ATEX: Sira 16ATEX2288 CE II 1 G Ex ia IIC T4 Ga EN 60079-0:2012/A11:2013 EN 60079-11:2012
Gases:
- H2S …………………………………0 – 100 PPM (0.1 ppm increments)
- CO …………………………………..0 – 500 PPM (1 ppm increments)
- Combustible (LEL) …………….0 – 100% LEL (0.1% increments)
- O2 …………………………………..0 – 30% vol. (0.1% increments)
Sensor Type:
- H2S, CO & O2 …………………Plug-in electrochemical cell Combustible
- (LEL) ……………………………..Soldered infrared (IR)
