Description

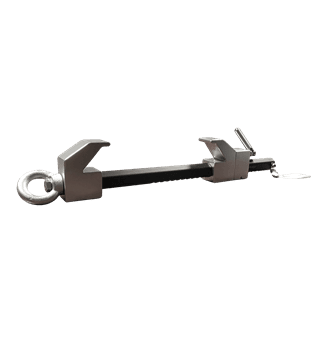

SafeWaze 019-4009 Vertical / Stationary Beam Clamp Anchor (formerly # FS865)
The 019-4009 Vertical/Stationary Beam Anchor is designed to be used in a wide variety of applications as a single-person connection point. The anchor can be installed on beams in both Horizontal or Vertical orientations.
The anchor is lightweight, installs in seconds, and can easily adjust from 3.5†to 14″.
FEATURES
- Lightweight Aluminum Construction
- Adjusts to Fit Beams from 3.5†to 14â€
- Easy to use spring loaded Width Adjustment Lever
- Separate Tensioning lever
- ANSI 310 lbs. / OSHA 420 lbs. Weight Capacity
- Single User
SPECIFICATIONS
| Overall Length | 24.5 in (622.3 mm) |
| Fits Beam Flange Width | 4 in to 14 in |
| Materials | Aluminum |
| Weight | 5.75 lbs (2.61 kg) |
| Weight Capacity | ANSI: 130 – 310 lbs (59 – 140.61 kg) OSHA: 420 lbs (191 kg) |
| Minimum Breaking Load | 5,000 lbs |
| Applicable Standards | Meets OSHA 1926.502 – ANSI Z359.1 |
