Description
Gas Clip Technologies Multi Gas Clip Dock – Case, Regulator, Power Supply and USB Memory (MGC or MGC-P), MGC-Dock
Item # MGC-DOCK
Note: Each Clip Dock comes standard with 4 bays; Gas sold separately. Make selection above.
Gas Clip Technologies – Portable Gas Detection You Can Count On!
You can keep testing your portable gas detectors one at a time or you can test them in no time when you use the ultra-reliable multi gas detectors from Gas Clip Technologies and our new Multi Gas Clip (MGC) portable or wall
mountable docking station.
Test 4 units at a time, up to 12 per minute!
The MGC Dock lets you bump test and calibrate 4 monitors at once for LEL, H2S, CO and O2. You can test up to 12 monitors in a minute, which saves time and reduces testing gas. Accurately test and record all data for each monitor.
You name it, the MGC Dock accurately tests, records and stores the information. It provides individual monitor event logs, firmware, unit configurations and, of course, bump/calibration logs. The robust 2-GB USB gives you the memory you need and a lithium ion battery that can perform hundreds of tests before it needs to be recharged.
MGC Dock is compatible with all Multi Gas Clip units. These units are proven to help facility workers and contractors do their jobs safely, productively and cost eectively. To learn more about the MGC Dock and the unmatched reliability of our portable gas detectors, Call Now. Every second counts.

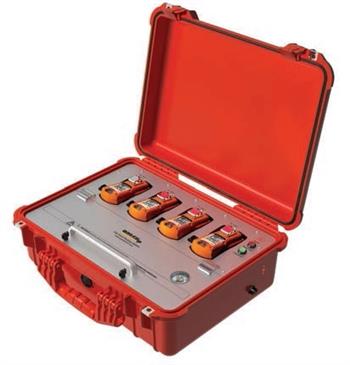

Gas Clip Technologies Clip Dock is an all in one docking station designed for maximum testing efficiency and portability. Housed in a rugged Pelican© case with robust USB memory, this station will be able to accurately test and record all monitor data while reducing the testing time and gas usage.
Traditional docking stations are only designed to test one instrument at a time, resulting in time consuming testing periods as well as unnecessary usage of testing gas. Gas Clip Technologies has significantly improved both testing time and test gas usage with the Clip Dock; users can now test 4 instruments simultaneously saving both time and money. Each Clip Dock comes with the following standard features:
- Test 4 units at one time, up to 12 instruments in a minute
- Easy 1 button operation
- Robust rechargeable internal battery, hundreds of tests before recharging
- Internal gas cylinder regulator and pressure gauge
- 2 GB USB memory for bump test and event log storage
- Optional unit configuration and firmware updates via GCT Manager Software
- Rugged Pelican© case or Slim Dock case
- No computer required to operate
- Model Numbers: MGC-DOCK (Standard); MGC-DOCK-SLIM (Slim Dock)
Clip Dock Specifications
Size: 18.06 x 12.89 x 6.72 in. (45.9 x 32.7 x 17.1 cm.)
Weight: 15 lbs. (6.8 kg.)
Temperature: 41 to +104ËšF (5 to +40ËšC)
Battery Life: 1500 Bump Tests
Charge Time: 2-3 hours
LEDs: 5 red/green/orange LEDs (1 for each unit, 1 for power)
Display: Alphanumeric Liquid Crystal Display (LCD)
Log Capacity: Approximately 5 million tests (2GB, removable USB memory)
Warranty: Full 2 years
User Options: Location, Gas expiration date, Gas bottle lot number, gas concentrations, bump gas time, bump sensor pass criteria, calibrations, bump tests, hibernations, detector configuration, firmware upgrades, turn off time
User’s Manual – Click to view/print
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Available Accessories- Call for Details & Pricing 931-651-1044
In addition to all the features built into the MGC,SGC and SGC+ portable gas detectors, Gas Clip Technologies offers a wide range of accessories to meet your needs.
Confined Space Kit
P/N: MGC-CSK
Everything you need for remote sampling. Includes: Hard-sided carryingcase with foam insert, 3ft. calibration hose with quick connect, hand aspirator pump, 10ft. sampling hose with quick connect, 1ft. sampling probe, IR Data Link,0.5 lpm regulator and a neck strap with safety release. (MGC detector and gas sold separately) |
IR Data Link
P/N: GCT-IR-LINK
Connected to your computer by USB, the IR Data Link communicates directly with the Multi Gas Clip and Docking Station to program special alarm set points, user options, as well as, download event logs & data logs. |
Vehicle Charger
P/N: MGC-V-CHARGER1
For your workers on the go, we have the option of charging using the vehicle charger (12V only).
Calibration Gas – (Available in Drop-Down menu above)
P/N: GCT-Q-* (58 or 116)
When calibrating your monitors with the Clip Dock or manually, use NIST traceable gas proved by Gas Clip Technologies in either 58 or 116 liter bottles. Standard Quad gas mixture – H2S/25 ppm, CO/100 ppm, O2/18% vol. and CH4/2.5% vol. (50% LEL). |
Additional Accessories
MGC-CHARGER1 – PWR, DC Power Adapter, MGC, 6V 1A
MGC-AL-CLIP – MGC Alligator Clip w/Screw
MGC-FILTER-* (10 or 50) – Filers: Pack of 10 or 50 individual filters
MGC-PROBE-1 – 1 ft. Remote sampling probe
MGC-PROBE-FK – MGC Probe replacement filter and gasket kit
MGC-WT – In-Line Hydrophobic Syringe Filter
MGC-PF – Air Stone Particulate Filter
*System Requirements: Available for Windows© based PCs (XP, Vista, Windows 7) ; Users must also install Microsoft Net 4.0 software.
