Description

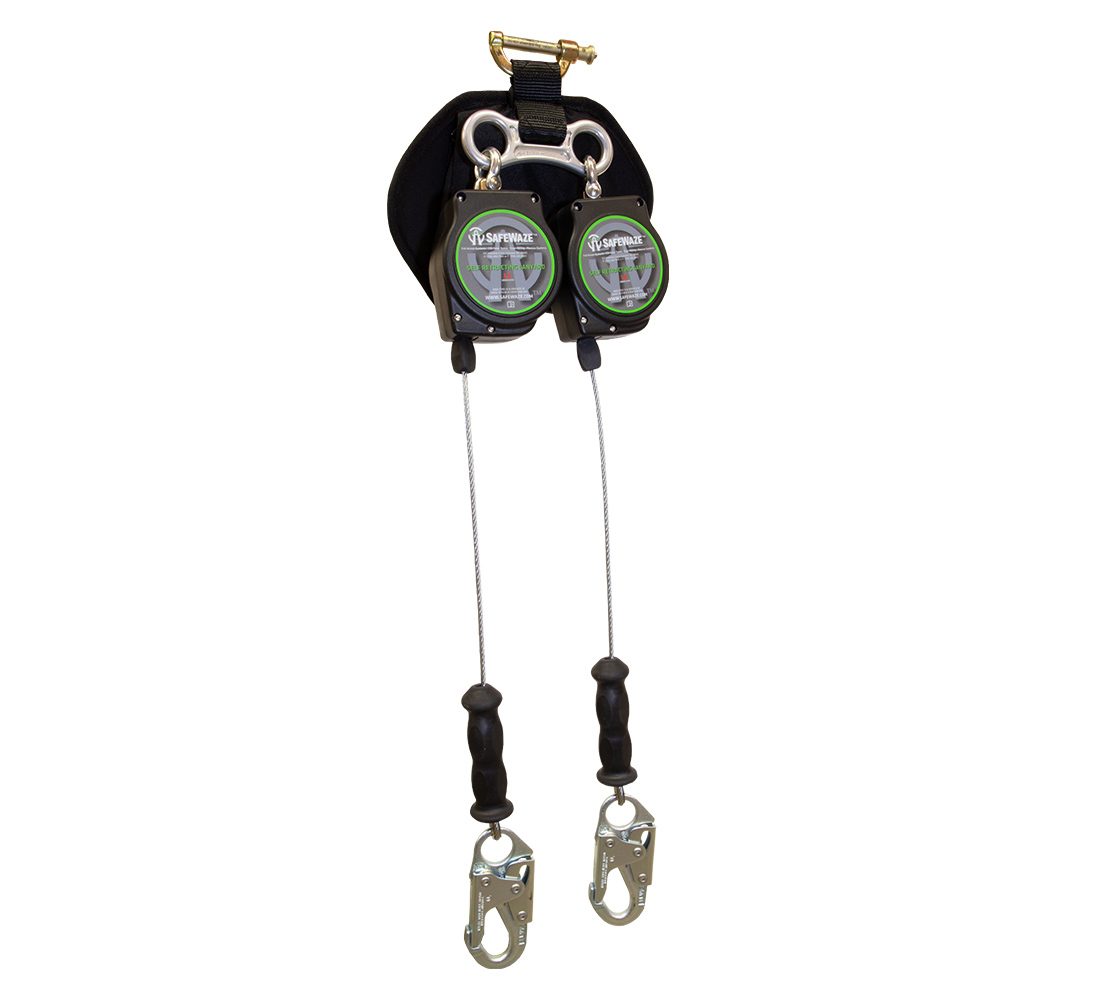

SAFEWAZE SW8008-11LE-DL Class A 11′ Leading Edge Cable Retractable Series, Dual Leg with Steel Snap Hooks
The SAFEWAZE SW-8008-11LE-DL 11′ Leading Edge Retractable is innovative in design by incorporating the integral energy absorber within a lightweight backpack style enclosure. This unit is engineered for foot-level and sharp edge applications commonly found on construction job sites. It comes complete with a Behind the Web dorsal D-ring attachment device for ease of wear and has a swivel top and durable housing.
- 11’ cable
- Cooling Air mesh lined protective shock pack cover with harness fastener straps for security and comfort
- Includes quick attachment bracket built to be easily installed or removed
- 3,600 lbs gate-rated indicator snap hooks
- Swivel top
- ANSI LEADING EDGE COMPATIBLE *For foot-level and sharp edge applications
- Meets ANSI Z359.14 – Class A *On overhead connections only
- 9012 bracket included
SPECIFICATIONS
ATTACHMENT POINTS: Steel snap hooks
MATERIALS: High-strength polymer housings, 0.19 in (4.82 mm) Galvanized steel cable, Steel Snap Hooks
WEIGHT: 9.40 lbs (4.26 kg)
WEIGHT CAPACITY / MAX WORKING LOAD: NON-LE USE: ANSI, 130-310 lbs (58.96-140.61 kg) OSHA, up to 420 lbs (190.51 kg) LE USE: 310 lbs (140.61 kg)
LENGTH: 11 ft (3.35 m)
HOOK RATINGS: 5,000 lbs (2267.96 kg) Tensile Strength, 3,600 lbs (1632 kg) Gate Rated
APPLICABLE STANDARDS: Meets OSHA 1926.502, ANSI Z359.14, ANSI A10.32
