SafeWaze FS-EX213 10K Removable Concrete Wedge Anchor with Mega Swivel

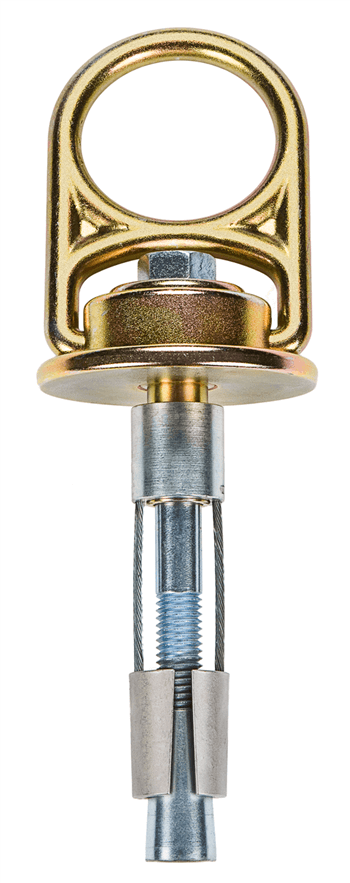

10K Removable Concrete Wedge Anchor

This 10K rated removable concrete anchor is designed with a 6 1/4″ wedge bolt and swivel D-ring.

FEATURES

  • The lightest and nimblest of its kind
  • Reusable clamp incorporates a variety of unique components including our swivel D-ring technology
  • Incredible strength
  • Superior performance
  • Weight capacity ANSI 310 lbs./OSHA 420 lbs.
  • Range 4” to 10”
  • Length 16″ / Depth 5.75″ / Height 6.50″

SPECIFICATIONS

Materials Return Wire – Aircraft Cable; Cone, Spoons – Stainless Steel; Retaining Bushing, Bolt, Sleeve, Swivel – Zinc Plated Steel; Compression Bushing – Polyethylene
Weight 2.10 lbs (952.5 g)
Weight Capacity/Max Working Load ANSI 310 lbs (140.61 kg) – Single user OSHA 420 lbs (191 kg) – Single user
Length 6.25 in (158.75 mm)
Diameter 1 in (25.4 mm)
Minimum Breaking Load 10,000 lbs – 44 kN
Applicable Standards Meets OSHA 1926-502, OSHA 1910.66, ANSI Z359.1, ANSI Z359.7

Additional information

Weight 2 lbs
Dimensions 45 × 45 × 10 cm
